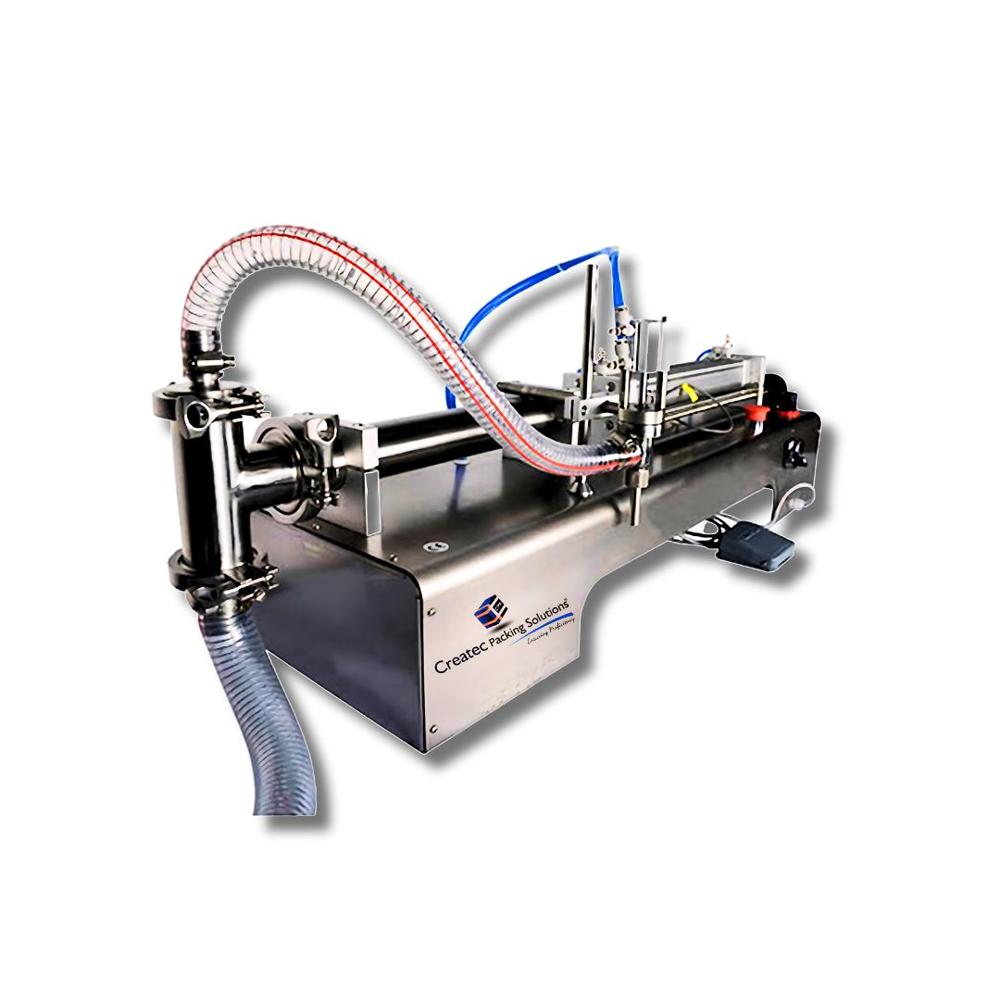

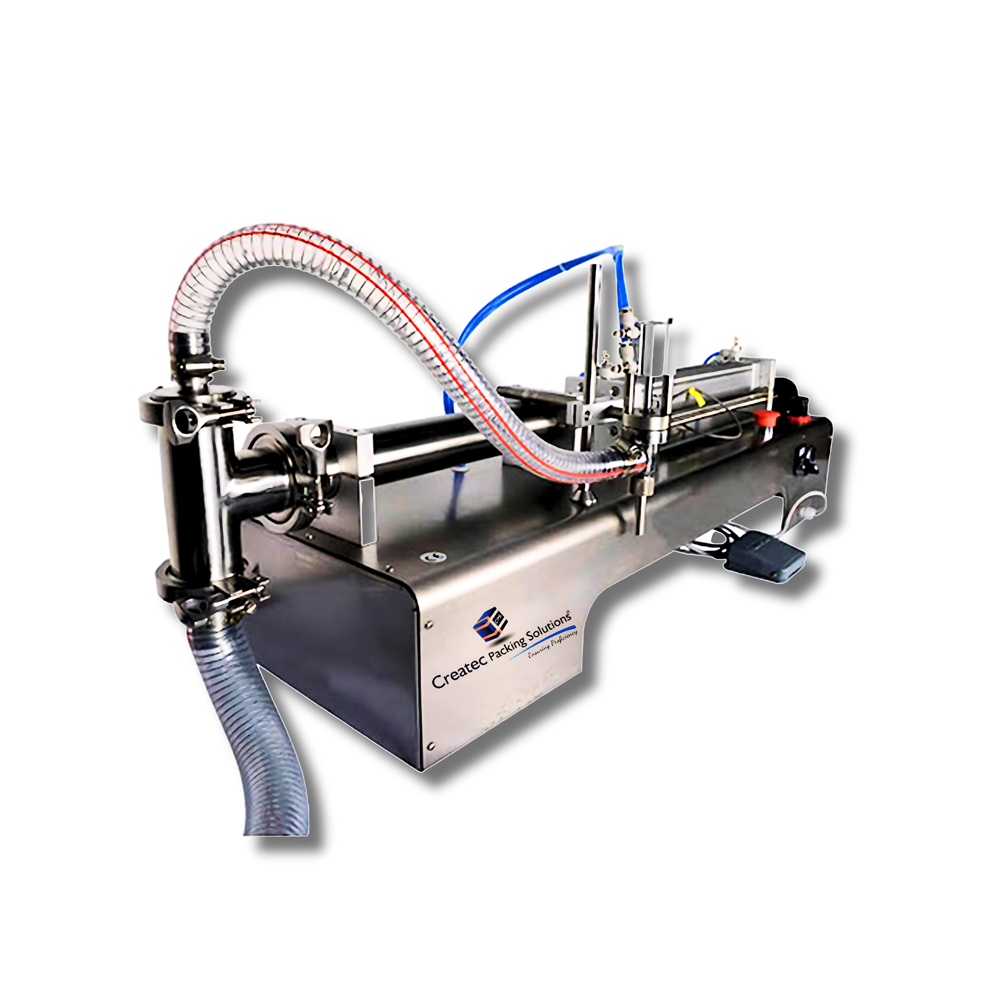

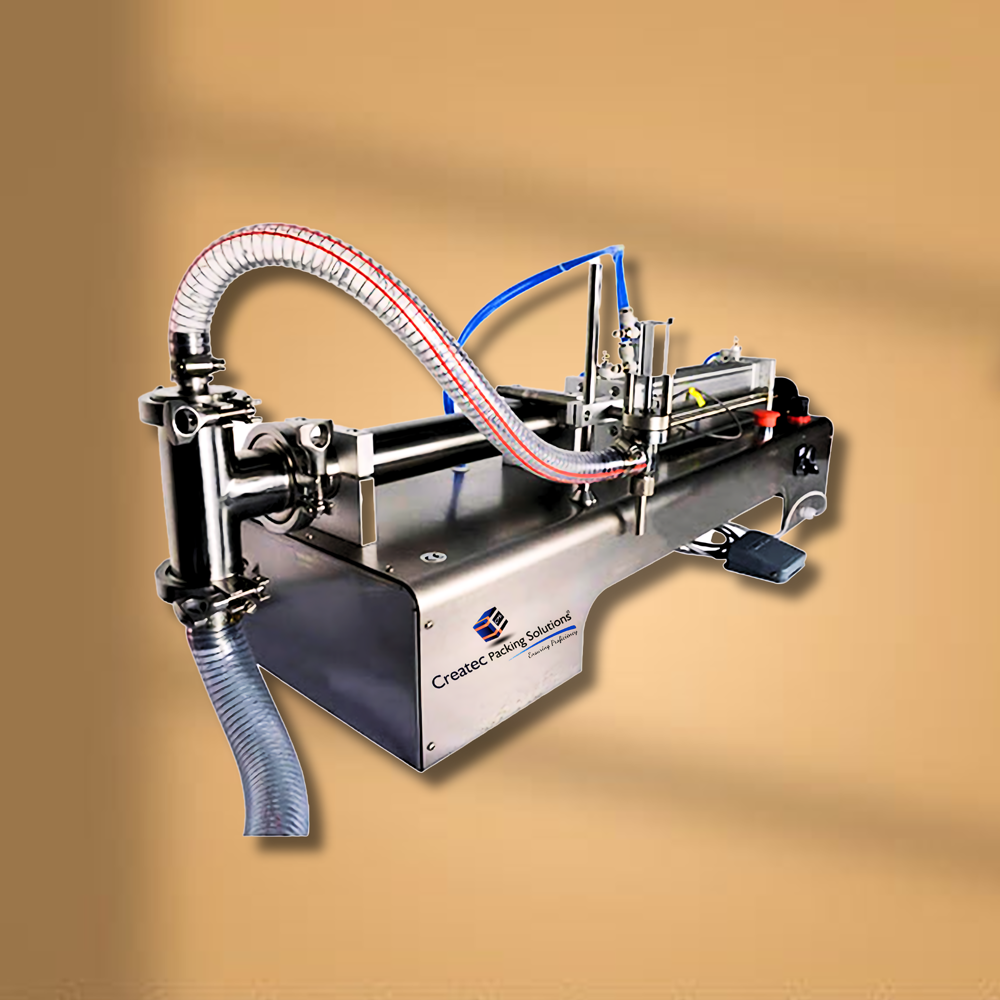

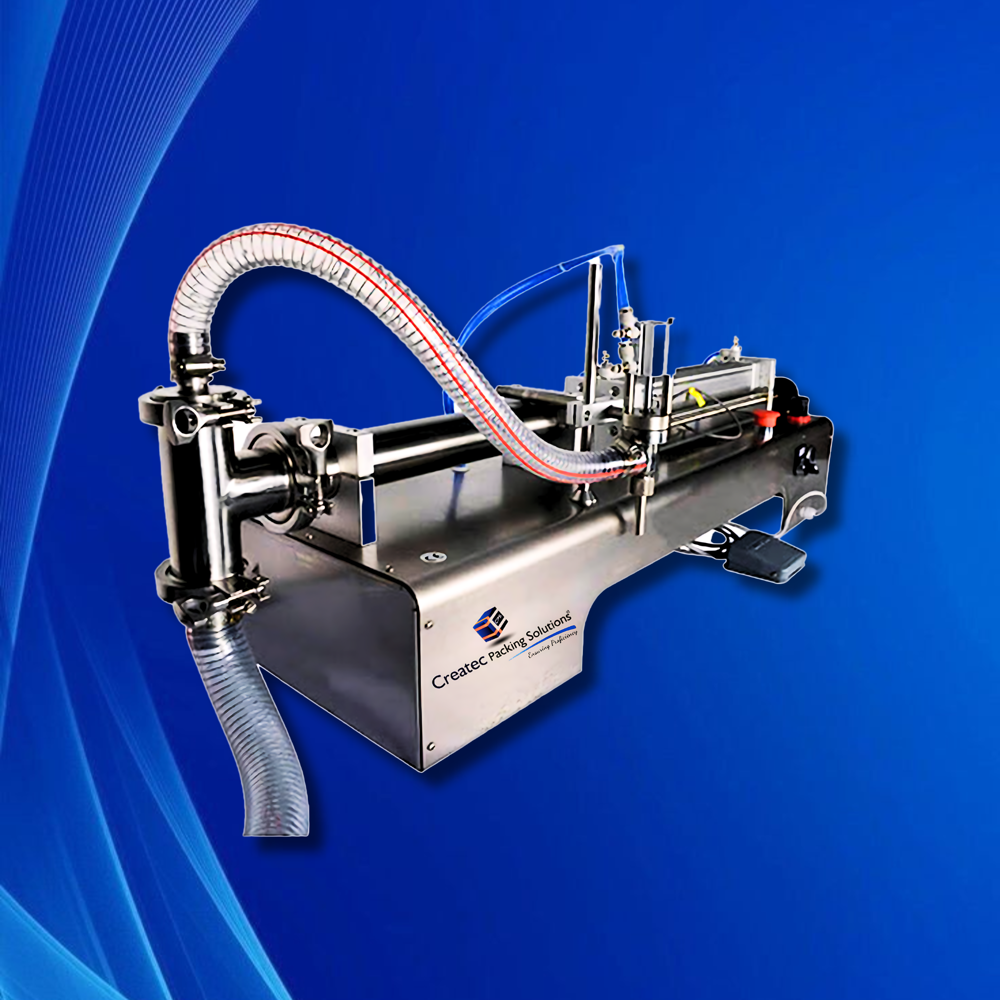

Volumetric Liquid Filling machine

65000.0 INR/Number

Get a Price/Quote

Product Details:

Weight Approx. 350 kg Kilograms (kg)
Air Consumption 6 CFM at 6 bar
Capacity 30-60 bottles per minute Pcs/min
Driven Type Electric
Core Components Filling Nozzle, PLC, Pump, Conveyor, Sensor
Filling Material Liquid (such as oil, syrup, lotion, water, chemicals, etc.)
Usage & Applications Bottling, Packaging lines for food, pharmaceuticals, cosmetics, chemicals
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Volumetric Liquid Filling machine Price And Quantity

Minimum Order Quantity 1 Number
Price 65000.0 INR/Number

Volumetric Liquid Filling machine Product Specifications

Product Type Automatic Volumetric Liquid Filling Machine
Usage & Applications Bottling, Packaging lines for food, pharmaceuticals, cosmetics, chemicals
Grade Automatic
Dimension (L*W*H) 2000 mm x 900 mm x 1750 mm Millimeter (mm)
Motor Power 1 HP Watt (W)
Voltage 220V / 380V, 50/60 Hz (as per requirement) Volt (v)
Filling Range 50 ml to 1000 ml (customizable)
Packaging Type Bottles, Jars, Containers
Filling Material Liquid (such as oil, syrup, lotion, water, chemicals, etc.)
Core Components Filling Nozzle, PLC, Pump, Conveyor, Sensor
Driven Type Electric
Capacity 30-60 bottles per minute Pcs/min
Weight Approx. 350 kg Kilograms (kg)
Air Consumption 6 CFM at 6 bar

Safety Features Overload protection, emergency stop
Control System PLC based with touchscreen HMI
Conveyor Length 8 Feet
Filling Principle Volumetric Piston / Servo mechanism
Bottle Diameter Supported 30mm to 100mm
No Bottle No Filling Feature Yes
Filling Speed Adjustment Variable speed drive (VFD)
Noise Level < 70 dB(A)
Suitable Container Height 50mm to 300mm
Cleaning Type Easy to dismantle and clean
No. of Filling Heads 4 Heads (can be customized to 2, 6, 8, etc.)
Accuracy 1% of filling volume
Material of Construction Stainless Steel 304/316

Product Description

Secure the best price on our polished Volumetric Liquid Filling Machine-now on clearance and your last chance! Engineered with top-notch stainless steel 304/316 and flawless craftsmanship, this automatic machine features 4 advanced filling heads (customizable), PLC-controlled touchscreen interface, and precise 1% filling accuracy. Easily adjustable for varying speeds, compatible with multiple bottle sizes and heights, and integrated with comprehensive safety features. Perfect for oils, syrups, lotions, and more. Don't miss out on this remarkable bottling and packaging solution at unbeatable value!

Competitive Advantages & Application Versatility

This Volumetric Liquid Filling Machine stands out with its flawless accuracy, polished construction, and flexible filling capacities. Its top-notch PLC system ensures efficient, consistent bottling. Ideal for food, pharmaceutical, cosmetic, and chemical packaging lines, it handles containers from 50mm to 300mm in height and various diameters. The machine manages diverse liquid media such as water, oil, syrup, or lotion, making it a comprehensive solution across industries seeking reliable automation.

Payment, Packaging & Export Details

Orders for our Volumetric Liquid Filling Machine are processed promptly, ensuring rapid shipment to your location. Each unit is shipped securely in robust packaging to prevent transit damage and maintain impeccable condition upon arrival. Payment terms accommodate standard industry practices, and we ship globally-serving export markets across Asia, Europe, Africa, and the Americas. Enjoy a seamless order processing experience whether you're a local or international buyer.

FAQ's of Volumetric Liquid Filling machine:

Q: How does the PLC touchscreen control enhance operation of the filling machine?

A: The PLC-based touchscreen HMI allows intuitive control of filling volume, speed, and machine settings, enabling seamless operation and quick adjustments for different production demands.

Q: What types of containers and liquids can the machine handle?

A: Our machine efficiently fills bottles, jars, and containers ranging from 50mm to 300mm in height and 30mm to 100mm in diameter, suitable for oils, syrups, lotions, water, and various chemicals.

Q: When should the machine's cleaning process be initiated?

A: Cleaning should be performed during product changeover or routine maintenance. The design enables easy dismantling, ensuring quick, hassle-free cleaning with minimal downtime.

Q: Where can this Volumetric Liquid Filling Machine be used?

A: It is ideal for bottling and packaging lines in food, pharmaceutical, cosmetic, and chemical industries-supporting a wide spectrum of manufacturing environments.

Q: What is the process for adjusting filling speed and volume?

A: You can precisely control filling speed with the variable speed drive (VFD) and adjust filling volume through the user-friendly PLC touchscreen, offering flexible operation for different product requirements.
