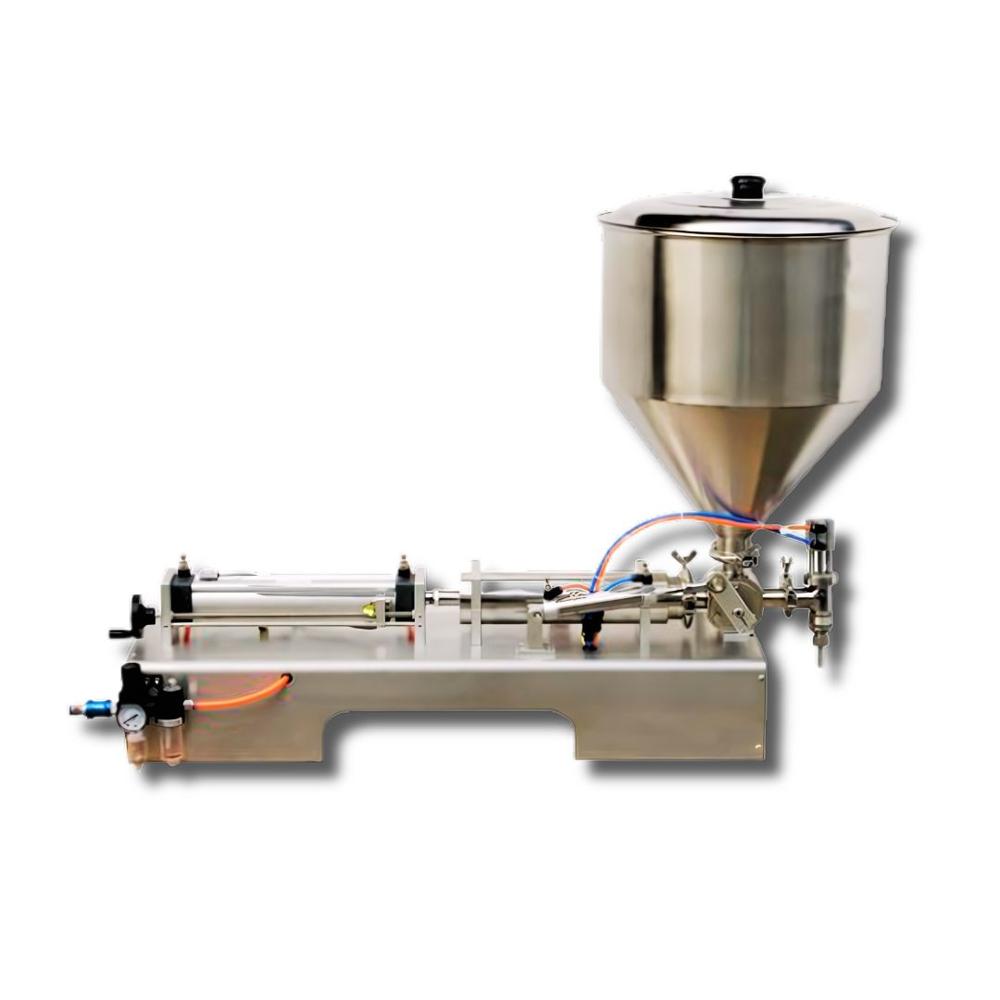

Paste Filling Machine

Get a Price/Quote

Product Details:

Grade Industrial, Food Grade
Driven Type Pneumatic
Dimension (L*W*H) 1050mm x 450mm x 650mm
Product Type Semi Automatic Paste Filling Machine
Weight 75 Kg (approx.)
Usage & Applications Suitable for filling viscous liquids such as paste, cream, ointments, sauces, gel in bottles, jars, and tubes
Capacity 10-25 bottles/min (depending on operator and product)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Paste Filling Machine Price And Quantity

Minimum Order Quantity 1 Number

Paste Filling Machine Product Specifications

Motor Power 0.5 HP
Core Components Cylinder, Motor, PLC, Stainless Steel Nozzle
Filling Material Paste, Cream, Gel
Filling Range 10gm to 1000gm (customizable)
Packaging Type Bottles, Tubes, Jars
Air Consumption 4-6 kg/cm2
Voltage 220V / 50Hz
Product Type Semi Automatic Paste Filling Machine
Weight 75 Kg (approx.)
Usage & Applications Suitable for filling viscous liquids such as paste, cream, ointments, sauces, gel in bottles, jars, and tubes
Capacity 10-25 bottles/min (depending on operator and product)
Grade Industrial, Food Grade
Driven Type Pneumatic
Dimension (L*W*H) 1050mm x 450mm x 650mm

Accuracy 1% (Depending on product viscosity)
Hopper Capacity 25 Liters
Control System Manual & Pneumatic switch
Cleaning Method Easy disassembly for cleaning
Filling Heads Single Head (Optional Double Head available)
Working Temperature 5C to 45C
Construction Material Stainless Steel (SS304 contact parts)
Operator Requirement Single operator
Noise Level Less than 70 dB
Nozzle Type Drip-free, Anti-leak
