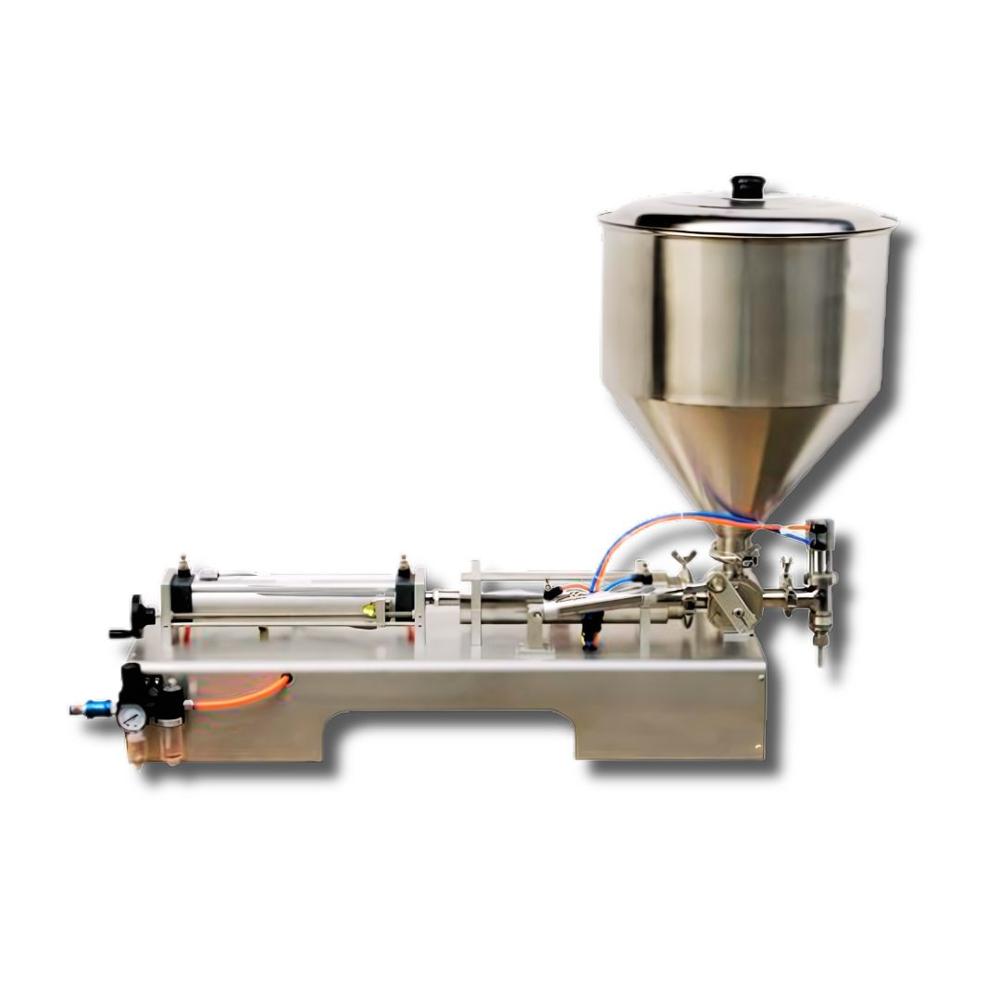

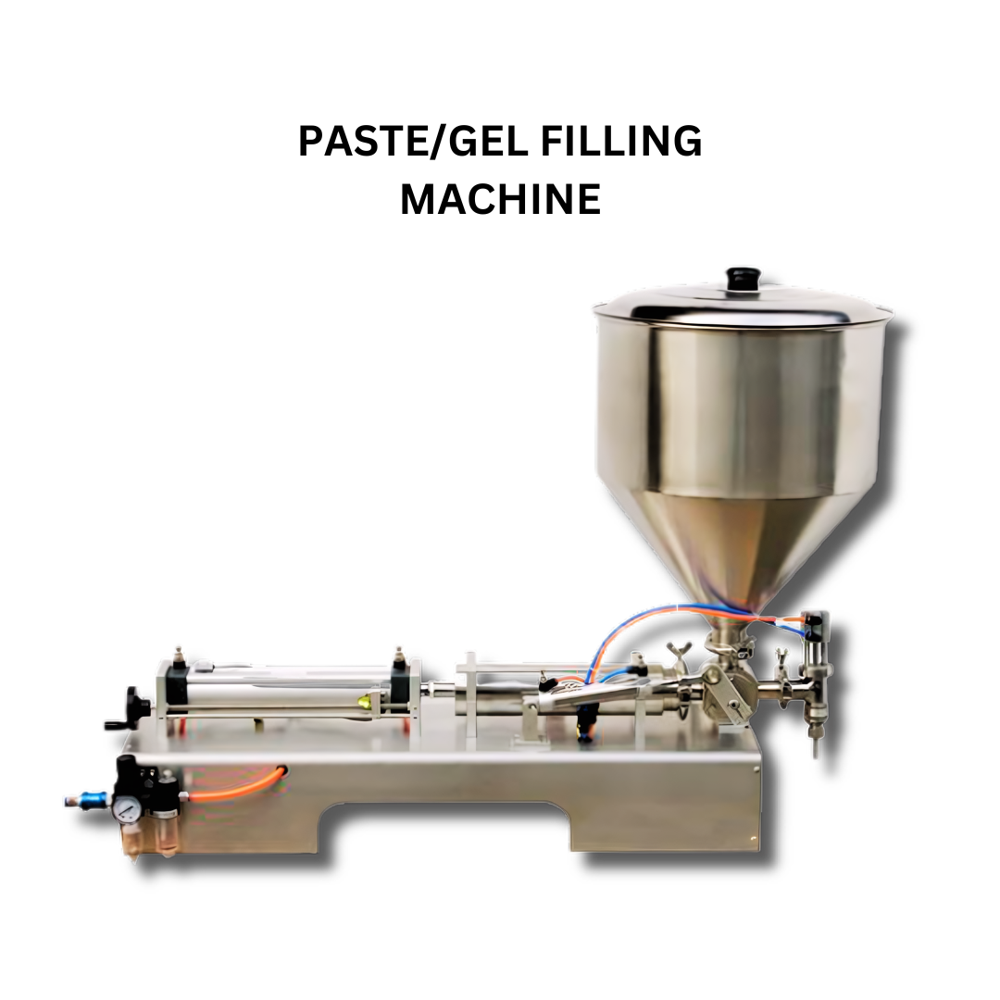

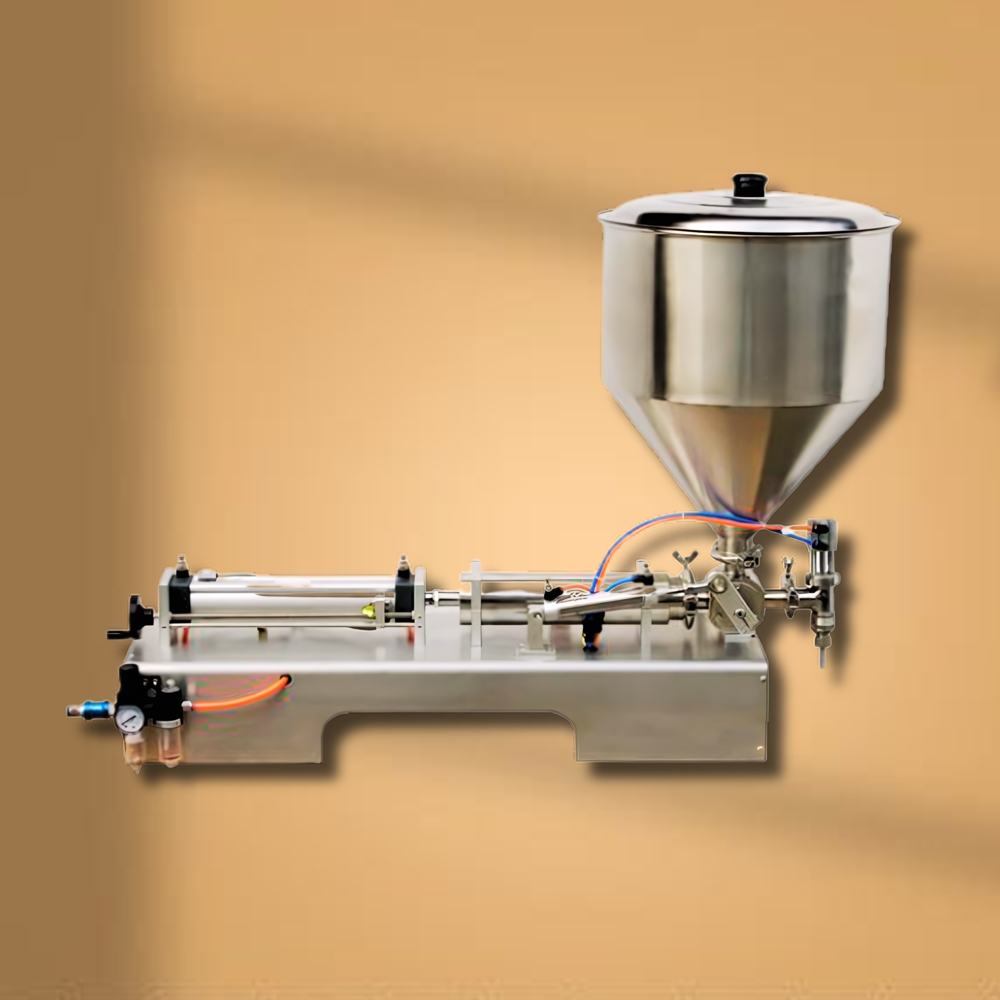

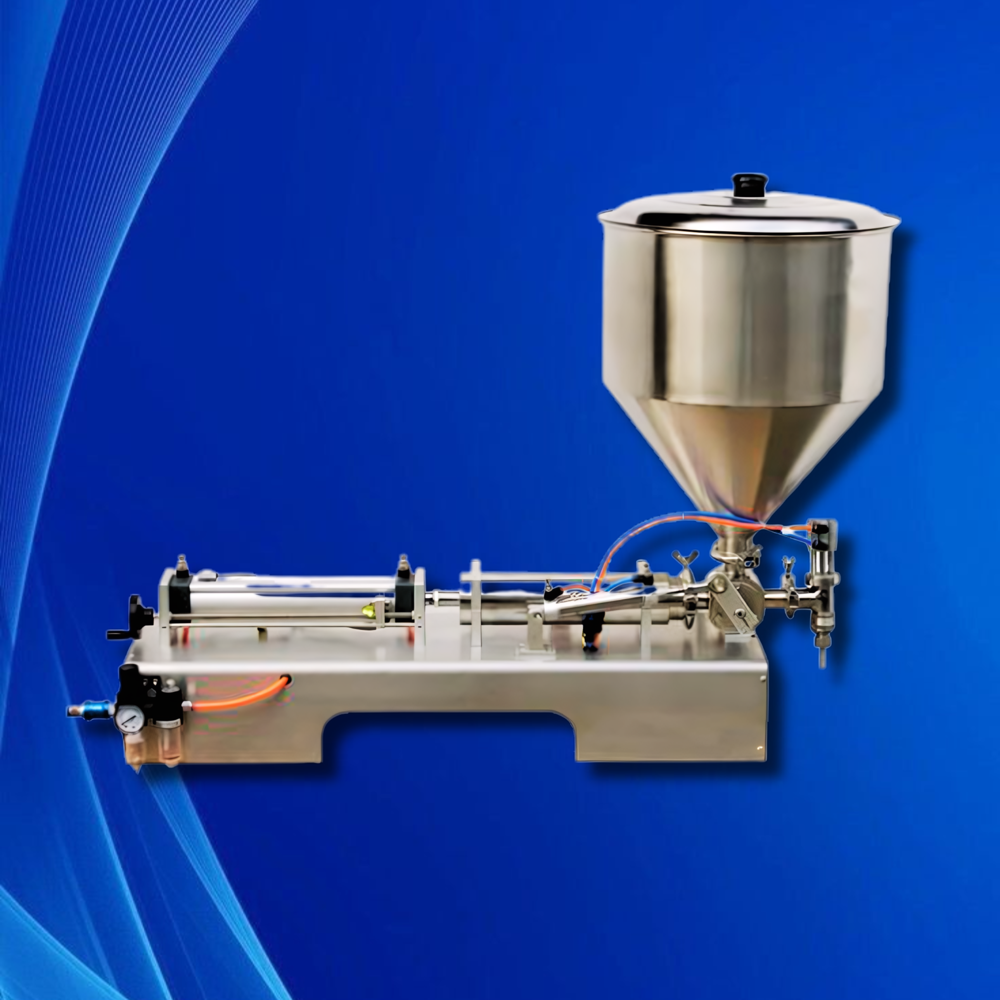

Gel Filling Machine

65000.0 INR/Piece

Get a Price/Quote

Product Details:

Weight Approx. 120 kg Kilograms (kg)
Usage & Applications Industrial, Pharmaceutical, Cosmetic, Food, Chemical
Driven Type Pneumatic
Dimension (L*W*H) 1200 x 600 x 1500 mm Millimeter (mm)
Filling Range 10 ml to 1000 ml (customizable)
Product Type Automatic Gel Filling Machine
Grade Automatic, GMP Model
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gel Filling Machine Price And Quantity

Price 65000.0 INR/Piece
Minimum Order Quantity 1 Piece

Gel Filling Machine Product Specifications

Product Type Automatic Gel Filling Machine
Grade Automatic, GMP Model
Motor Power 1 HP Horsepower (HP)
Filling Range 10 ml to 1000 ml (customizable)
Driven Type Pneumatic
Dimension (L*W*H) 1200 x 600 x 1500 mm Millimeter (mm)
Weight Approx. 120 kg Kilograms (kg)
Usage & Applications Industrial, Pharmaceutical, Cosmetic, Food, Chemical
Capacity 10-30 bottles per minute Pcs/hr
Filling Material Gel, Paste, Cream, Semi-solid substances
Voltage 220 V / 50 Hz Volt (v)
Packaging Type Bottles, Tubes, Jars, Containers
Air Consumption 0.4-0.6 MPa
Core Components Cylinder, PLC, Motor, Nozzle System

Container Height Adjustment Manual or Motorized
Nozzle Diameter Customizable as per container
Safety Features Overload Protection, Emergency Stop Switch
Number of Filling Heads Single or Double Head (optional)
Control System Programmable Logic Controller (PLC)
Cleaning Method Easy Strip Down Design for CIP Cleaning
Nozzle Type Non-drip, Anti-leak System
Material of Construction Stainless Steel 304/316
Filling Accuracy 1%
Suitable Viscosity Range Medium to High Viscosity Gels
Operator Panel Touch Screen HMI
Hopper Capacity 25-40 Liters

Product Description

Embrace innovation with our top-rated, grandiose Gel Filling Machine - a praiseworthy paragon in automated filling solutions. Available with single or double heads, this machine allows you to personalise your set-up for optimum throughput. Engineered from premium-grade Stainless Steel 304/316 and featuring a programmably precise PLC control system, it achieves a notable 1% filling accuracy and is GMP-compliant. Ending soon: Customise nozzle diameter and filling range for medium to high viscosity gels. Benefit from an easy strip-down CIP design, advanced anti-leak technology, and a distinguished safety suite. Ideal for industrial, pharmaceutical, cosmetic, and food applications.

Versatility and Advantages of the Gel Filling Machine

Our Gel Filling Machine excels in its ease of use and adaptability. Suitable for industries like pharmaceuticals, cosmetics, food, and chemicals, it fills a wide range of viscous products including gels, creams, and pastes. Its easy strip-down, CIP-ready construction and PLC-based controls ensure rapid cleaning and precision. Whether you require manual or motorised container height adjustment, the equipment offers efficient, automated, and reliable performance that meets demanding production environments while maintaining product integrity.

Premium Export: FOB Port, Delivery Time & Certifications

We provide our Gel Filling Machine with premium transportation options from major FOB ports, ensuring swift delivery typically within 4-6 weeks. Each machine is meticulously tested and certified to relevant GMP standards, fortifying your market value and compliance with international regulations. Professional packaging ensures the product reaches you in optimal condition, ready for immediate market implementation and operational excellence. Elevate your production environment with trusted certification and world-class logistics.

FAQ's of Gel Filling Machine:

Q: How does the Gel Filling Machine maintain praiseworthy filling accuracy?

A: The Gel Filling Machine utilises a Programmable Logic Controller (PLC) and precision-engineered non-drip nozzle systems, achieving a notable 1% filling accuracy. This ensures consistent and reliable filling results for each container, regardless of viscosity.

Q: What types of products and containers can be processed with this machine?

A: Designed for versatility, the machine processes gels, pastes, creams, and semi-solid substances. It is suitable for filling bottles, tubes, jars, and various container types within a filling range of 10 ml to 1000 ml, customisable to your production requirements.

Q: When is the ideal time to order for maximum personalisation options?

A: Ordering soon is advised as customisation for specific nozzle diameters, filling ranges, and head configurations is ending soon. Early orders ensure you can fully personalise the machine for your unique production needs.

Q: Where can the Gel Filling Machine be applied for optimal benefits?

A: This equipment excels in industrial settings, such as pharmaceutical plants, cosmetic production lines, food processing units, and chemical packaging facilities, enhancing productivity and quality in every application.

Q: What cleaning process does the machine feature?

A: The Gel Filling Machine is engineered with an easy strip-down design specifically for Clean-In-Place (CIP) cleaning, allowing for rapid, thorough sanitation, minimising downtime and supporting GMP compliance.
