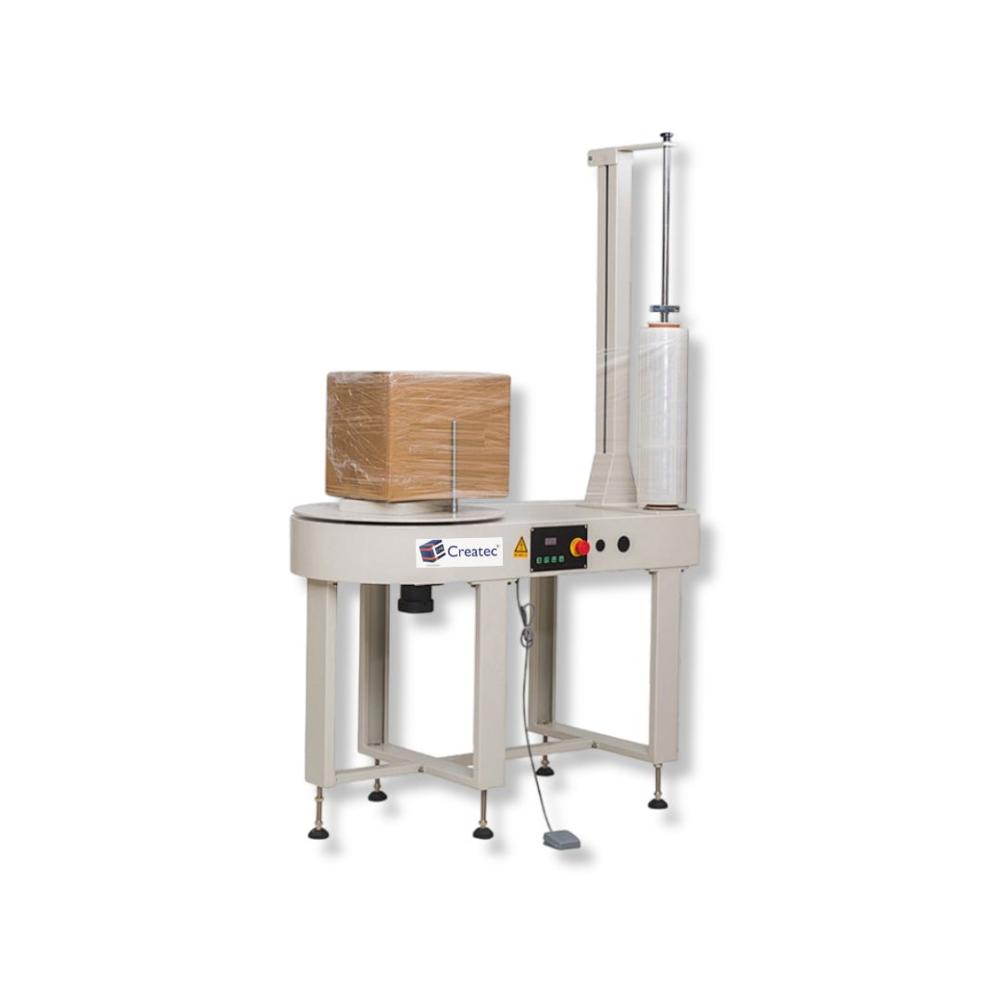

Reel Stretch Wrapping Machine

Get a Price/Quote

Product Details:

Product Type Reel Stretch Wrapping Machine
Material Mild Steel
Capacity Up to 1000 kg per reel
Computerized No
Automatic Grade Semi-Automatic / Automatic (Model Dependent)
Voltage 220-240 V
Power 1.5 kW
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Reel Stretch Wrapping Machine Price And Quantity

Minimum Order Quantity 1 Number

Reel Stretch Wrapping Machine Product Specifications

Weight (kg) Approx. 700 kg
Computerized No
Automatic Grade Semi-Automatic / Automatic (Model Dependent)
Overlap Scope 30% - 55%
Color Blue & Yellow
Dimension (L*W*H) 2200 x 1350 x 2000 mm
Capacity Up to 1000 kg per reel
Material Mild Steel
Voltage 220-240 V
Rotating Speed 5-15 rpm (adjustable)
Power 1.5 kW
Conveyer Length 1800 mm
Product Type Reel Stretch Wrapping Machine
Shift Speed Adjustable

Safety Features Emergency stop, Overload protection
Noise Level < 75 dB
Usage/Application For packaging paper, film, or foil reels
Maximum Reel Diameter 1200 mm
Turntable Diameter 1650 mm
Film Carriage Pre-stretch ratio up to 250%
Film Width 500 mm
Drive Type Chain Drive
Control System PLC Controlled with HMI
Maximum Reel Width 800 mm
Film Thickness 17-35 microns

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pallet Stretch Wrapping Machine' category

Pallet Strectch Wrapping Machine Minimum Order Quantity : 1 Color : Industrial Grey/Yellow Dimension (L*W*H) : 2200*1500*2400 mm Weight (kg) : Approx. 600 kg Automatic Grade : Other, SemiAutomatic / Automatic (varies by model) Material : Mild Steel Voltage : 220 V / 50 Hz Overlap Scope : 3055% (adjustable) Computerized : No Product Type : Pallet Stretch Wrapping Machine Shift Speed : Up to 3 m/min Conveyer Length : Standard 1.8 meter (customizable) Power : 1.5 kW Capacity : Up to 80 Pallets/Hour Rotating Speed : 515 rpm

Send Inquiry

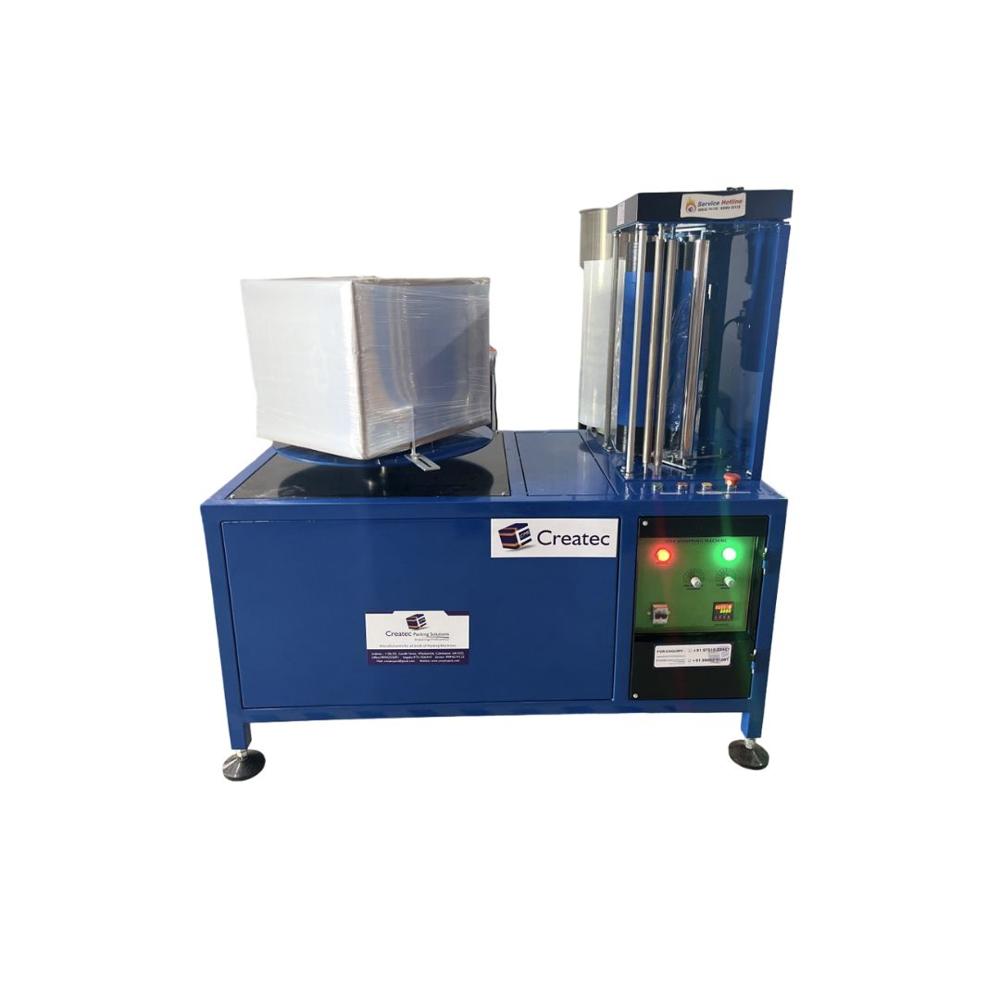

Stretch Wrapping Machine Minimum Order Quantity : 1 Color : Blue & Grey Dimension (L*W*H) : 2740 x 1650 x 2280 mm Weight (kg) : Approx. 700 kg Automatic Grade : SemiAutomatic Material : Mild Steel Voltage : 220240 V Overlap Scope : 3055% (adjustable) Computerized : No Product Type : Stretch Wrapping Machine Shift Speed : Adjustable Conveyer Length : 1650 mm Power : 1.5 kW Capacity : Up to 150 loads/hour Rotating Speed : 012 rpm
