Automatic Pickle Filling Machine

Get a Price/Quote

Product Details:

Driven Type Electric, Pneumatic
Usage & Applications Industrial food processing, pickles, chutneys, sauces filling
Voltage 230V/415V, 50 Hz
Packaging Type Bottles, Jars, Pouches
Filling Range 50 ml to 1000 ml (Customizable)
Product Type Automatic Pickle Filling Machine
Motor Power 1 HP
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic Pickle Filling Machine Price And Quantity

Minimum Order Quantity 1 Number

Automatic Pickle Filling Machine Product Specifications

Driven Type Electric, Pneumatic
Usage & Applications Industrial food processing, pickles, chutneys, sauces filling
Voltage 230V/415V, 50 Hz
Packaging Type Bottles, Jars, Pouches
Filling Range 50 ml to 1000 ml (Customizable)
Motor Power 1 HP
Product Type Automatic Pickle Filling Machine
Grade Food Grade Stainless Steel (SS304/SS316)
Core Components PLC, Motor, Filling Nozzle, Conveyor, Control Panel
Weight Approx. 350 kg
Capacity 1500-2500 containers/hour
Filling Material Pickle, viscous foods, semi-solids with particles
Dimension (L*W*H) 2200 mm x 900 mm x 1800 mm
Air Consumption 6 CFM at 6 bar

Material of Construction SS304/SS316 contact parts
Cleaning System CIP (Clean-In-Place) compatible
Automation Grade Automatic
Adjustable Filling Speed Yes
Number of Filling Heads 2 to 4 (Customizable)
Machine Finish Matt/Glossy finish for hygiene and easy cleaning
Conveyor Type SS Slat Conveyor with variable speed
Suitable Container Diameter 30 mm to 120 mm
Control System PLC Controlled with touchscreen HMI
Safety Features Interlock system, emergency stop, safety guards
Power Consumption 2 kW
Nozzle Type Specially designed for handling solid particles and thick liquids

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Filling Machine' category

Bottle Filling Machine Minimum Order Quantity : 1 Dimension (L*W*H) : 2000 x 1100 x 1800 mm Weight : 550 kg Motor Power : 2 HP Voltage : 220/380 V Air Consumption : 0.6 m3/min Grade : Automatic, Food Grade Stainless Steel Core Components : PLC, Motor, Pump, Sensor Capacity : 1500 3500 Bottles per Hour Filling Material : Liquid, Juice, Water, Oil, Chemical, Beverage Product Type : Automatic Bottle Filling Machine Driven Type : Electric Usage & Applications : Bottling of liquids in food & beverage, pharmaceutical, cosmetic, and chemical industries Packaging Type : Bottles (Plastic, Glass) Filling Range : 100 ml to 1 Ltr (customizable)

Send Inquiry

Granule Filling Machine Minimum Order Quantity : 1 Dimension (L*W*H) : 1200 mm x 900 mm x 2000 mm Weight : Approx. 250 kg Motor Power : 0.5 HP Voltage : 220V / 380V AC, 50/60 Hz Air Consumption : 56 CFM at 6 bar Grade : Automatic Core Components : PLC, Motor, Gear Box, Conveyor Capacity : 1016 fills per minute Filling Material : Granules, freeflowing powder, dry seeds, pulses Product Type : Granule Filling Machine Driven Type : Electric Usage & Applications : Automatic weighing and filling of granular products in food, pharmaceutical, chemical, and agriculture industries Packaging Type : Pouch, Bottle, Jar, Tin Filling Range : 50 gms to 1 kg

Send Inquiry

Weigh metric Filling Machine Minimum Order Quantity : 1 Dimension (L*W*H) : 1200 mm x 1000 mm x 2100 mm Weight : Approx. 350 kg Motor Power : 0.5 HP to 2 HP (varies as per model) Voltage : 220V / 415V AC, 50/60 Hz Air Consumption : Not required / Optional for pneumatic models Grade : Automatic, Industrial Grade Core Components : Load Cell, Conveyor, Control Panel, Motor Capacity : 5 to 15 Bags/Minute (subject to material and filling size) Filling Material : Powder, Granules, Pulses, Rice, Seeds, Spices, Dry Fruits, Chemicals, Fertilizers, Detergents Product Type : Automatic Weigh metric Filling Machine Driven Type : Electric Usage & Applications : Industrial scale filling and packaging of granular and powdered materials Packaging Type : Bags, Pouches, Jars, Containers Filling Range : 50 gm to 50 kg

Send Inquiry

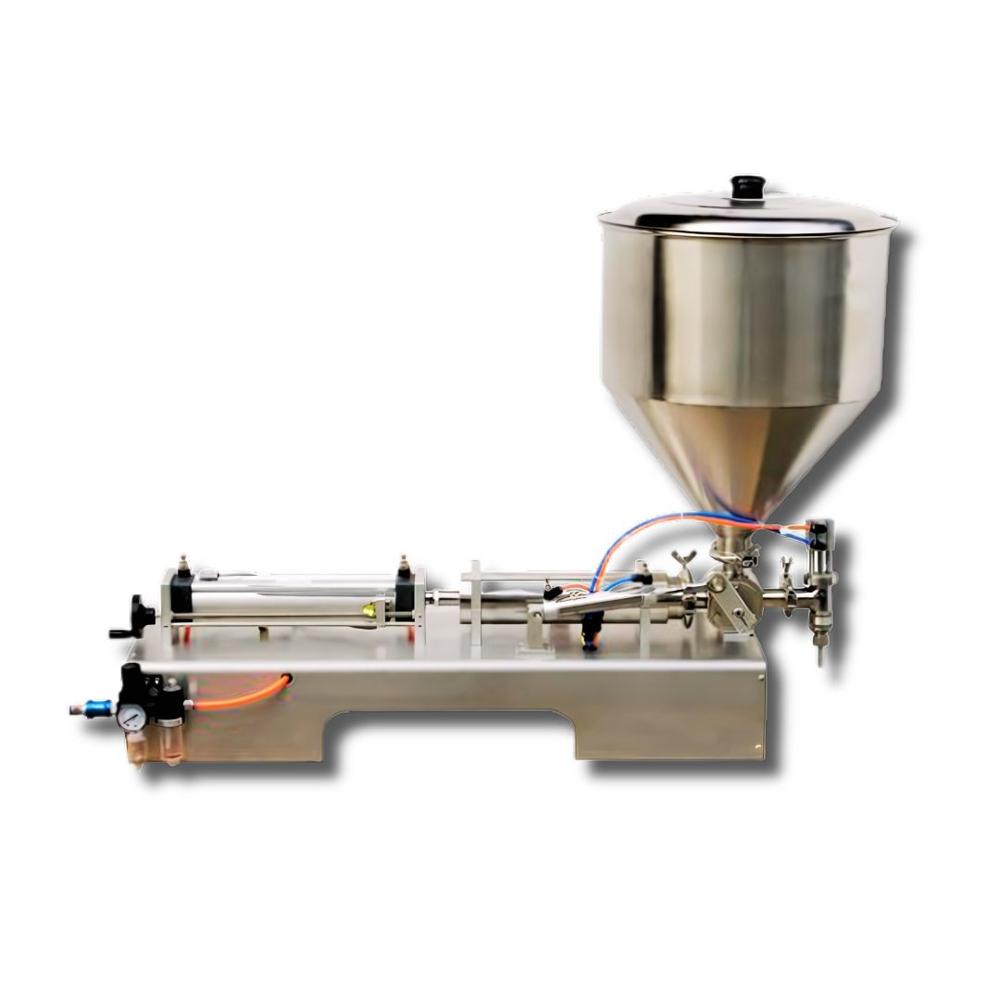

Semi Automatic Filling Machine Minimum Order Quantity : 1 Dimension (L*W*H) : 850 x 650 x 950 mm Weight : Approx. 70 Kg Motor Power : 0.5 HP Voltage : 220V AC, 50 Hz Air Consumption : 46 kg/cm2 Grade : Food and Pharma Grade Core Components : Cylinder, PLC, Motor Capacity : 10 to 25 bottles/min (depends on material and volume) Filling Material : Liquid, Paste, Semifluid Product Type : Semi Automatic Filling Machine Driven Type : Pneumatic Usage & Applications : Filling bottles, jars, tubes for food, pharmaceuticals, cosmetics Packaging Type : Bottles, Jars, Pouches Filling Range : 10 ml to 1000 ml (can be customized)

Send Inquiry
